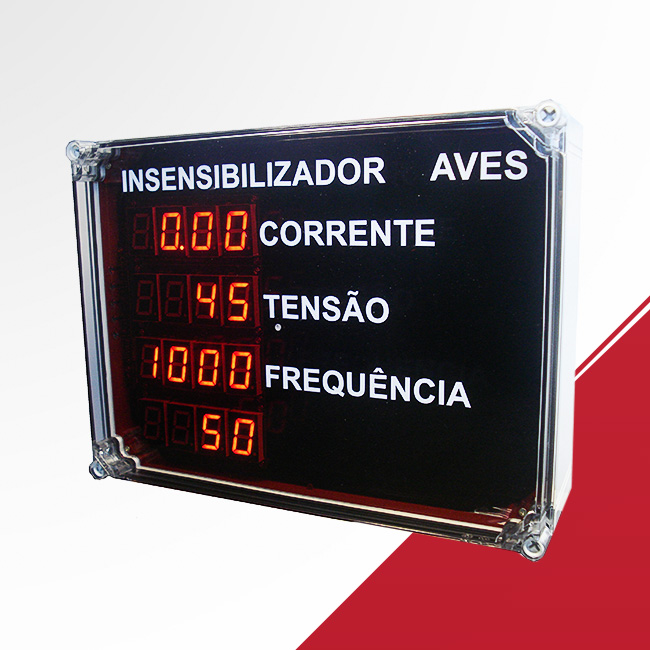

DIGITAL INDICATOR FX100 / 4 FIELDS

With high-brightness LED, the modbus FX100 indicator allows the user to view, even the distance, the monitored values of other devices that have RS-485 communication with modbus-RTU protocol.

TECHNICAL SPECIFICATIONS

  • RS-485 communication, modbus-RTU protocol master/slave;
  • Panel with 4 indicators, 4 digits of 1,5” each;
  • 90VAC to 240VAC power supply;
  • Programmable indicators individually or in combination;
  • Protection category IP66;
  • Equipment dimensions 300x400x132mm;

APPLICATIONS

  • Indicates the stunning variables in a form clearly and visible at the distance, with the simultaneous indications: voltage, current, frequency and time of stunning.
  • Allows the connection in networking or centralization of various equipments in a automation system.
