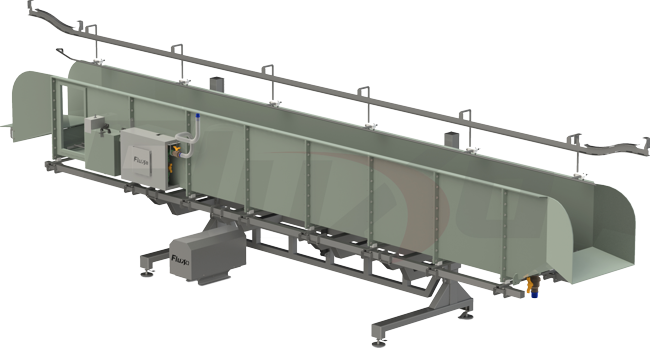

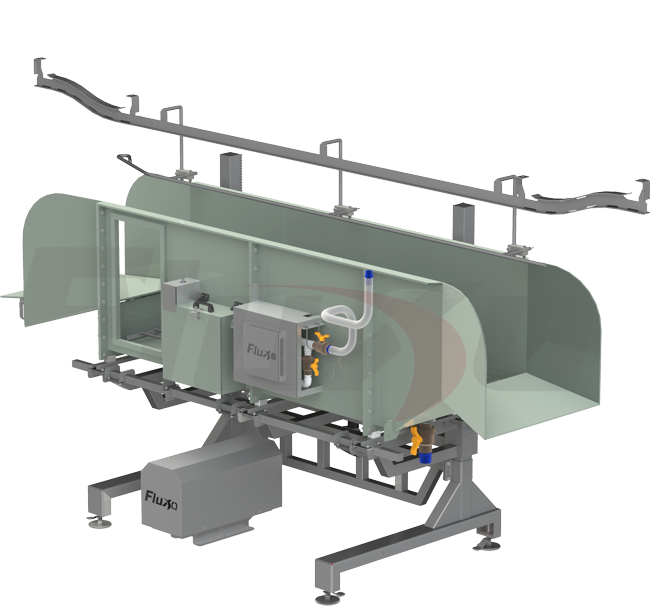

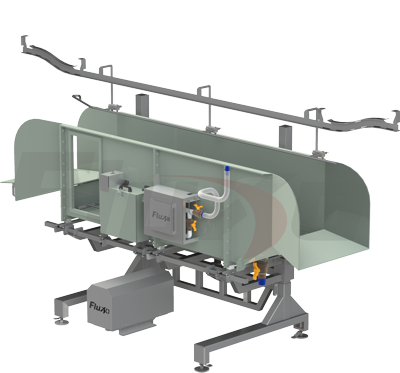

WATERBATH POULTRY STUNNER

PRO VERSION

Equipment built to poultry stunning with water immersion in accordance with the animal welfare requisitions, generating more productivity, meat quality and mechanical dimensions to suit the customer needs.

TECHNICAL CHARACTERISTICS

  • Size modulation from 1,6 up to 6,4m;
  • Available in two structure models (up to 2,8m and 3,2 to 6,4m);
  • Modular equipment, that allows the replacement of its parts after installation;
  • Insulation elements in the structure;
  • Allows installation in conveyors with 2285 to 2585mm height;
  • More than 10 optional items;
  • Output module with electrode until the end of the equipment extension;
  • Valve and hose included;
  • Control module with translucent visor;
  • With mechanical pass switch 1";
  • Option of two manual leveling pumps.

DIFFERENCES BETWEEN MODELS

FLUXO SMART FLUXO PRO FLUXO SOLUTION
Waterbath height mechanical adjust ✓ ✓ -

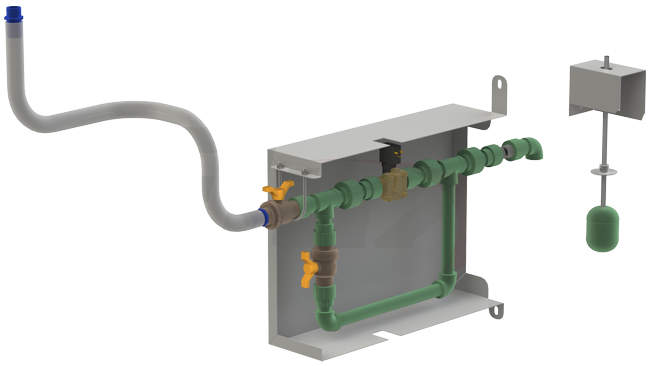

Mechanical water level control ✓ ✓ -
Full builded with insulation material ✓ ✓ ✓
Drainage system with flexible hose and valve ✓ ✓ ✓
Negative electrode - ✓ ✓
Entry ramp with adjustable inclination - ✓ ✓

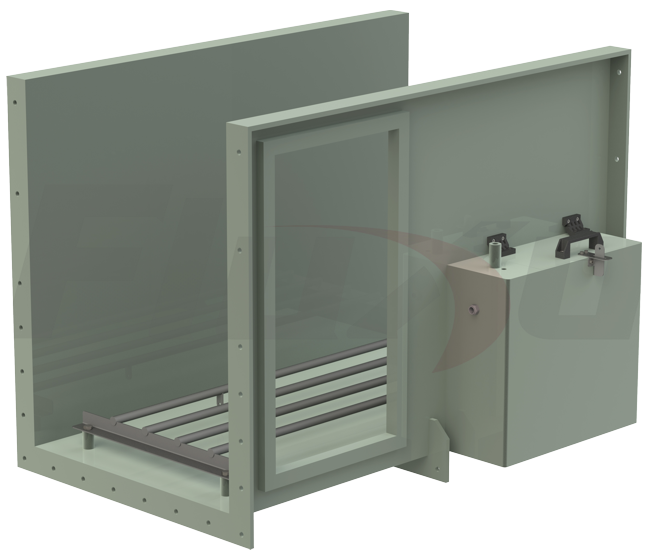

Visor for evaluate the poultry immersion - ✓ ✓
Mounting by modules - ✓ ✓
Mechanical height adjustment in stainless steel - ○ -

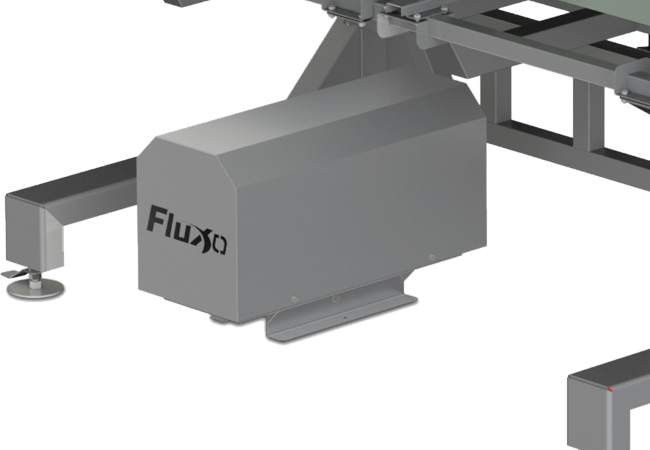

Hydropneumatic height adjustment - ○ -
Bypass module in PVC - ○ -
Electronic height adjustment - ○ ✓
Hydraulic and water level control panel - ○ ✓
Electronic water level system control - ○ -
Entrance and exit conveyor set - ○ ✓
Study of system implmentation compatibility - - ✓
Bypass module in PPR - - ✓

(✓)Serial item (○)Optional item (-)Not avaible item
