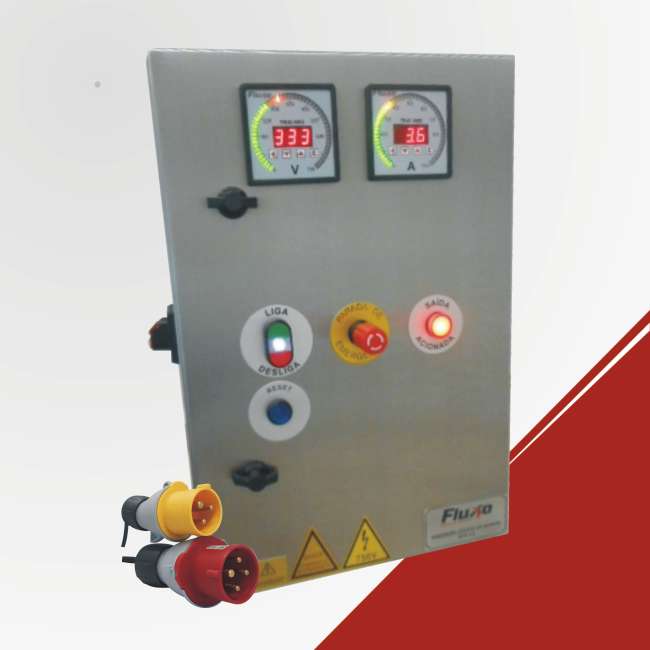

EMERGENCY STUNNER EFX 6.0 ACCORDING TO BRAZILIAN STANDARD NR12

Intending to attend the small pig slaughterhouses and emergencies situations, the Fluxo has developed a stunner that supply the requirements of animal welfare complying all the points of the actual legislation, ensuring the elimination of losses by the process of stunning and integral adequacy to the standards.

By the security devices, ensures the operator safety, being the only equipment in the Brazilian market in accordance with NR12 standard. It has security handle to enable the equipment which in case of current leakage or accident, through the double monitoring system interrupts the electrical supply.

TECHNICAL CHARACTERISTCS:

  • Single-phase power suplly 220V/50Hz or 60Hz;
  • Output voltage: 0 to 750V;
  • Output current: 10A;
  • Output frequency: 60Hz to 600Hz;
  • Voltage and current indication on the panel;
  • Protection against overload, overvoltage and undervoltage in the power input;
  • Double security relay to monitoring and operated by three stages handle;
  • Control by voltage and current;
  • Time control;
  • Isolation transformer;
  • Visual indication of system operation;
  • Can work trhough with fork sensor or by pedal;
  • IP54 protection level.
