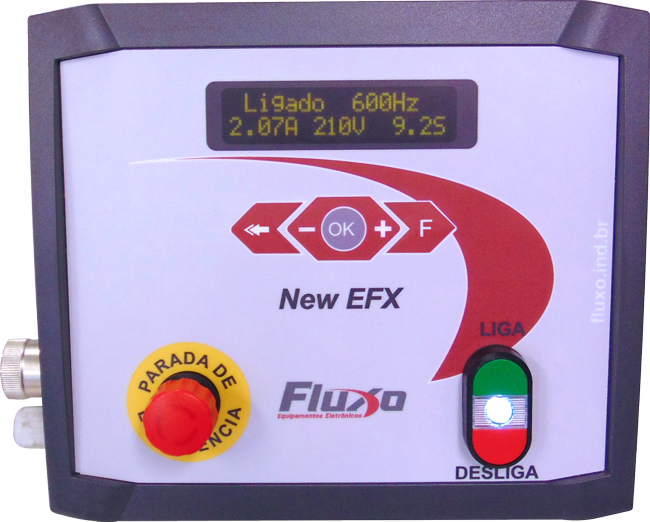

NEW EFX

The New EFX is a compact, portable and light stunner to slaughterhouses in emergencial slaughter situations. The Fluxo developed a equipment that meet the animal welfare requirements and in accordance with actual legislations, ensuring the elimination of the losses related with the stunning process. Through of the security devices integrated, ensures the operator safety.

With a decrease in the size and weight of the equipment, EFX can now be easily taken to other points in the slaughterhouse, making it much more practical to use.

TECHNICAL CHARACTERISTICS

  • Single phase power supply: 220V 50 or 60Hz;
  • Output current: 6A;
  • Output voltage: 0 up to 500V;
  • Output frequency: 20Hz up to 2500Hz
  • Indication of voltage, current, frequency and time in the display;
  • Protection against overload, overvoltage and undervoltage at the power supply;
  • Control by voltage or current;
  • Internal isolating transformer;
  • Visual indication of the system in operation;
  • Possibility of operation by fork activation;

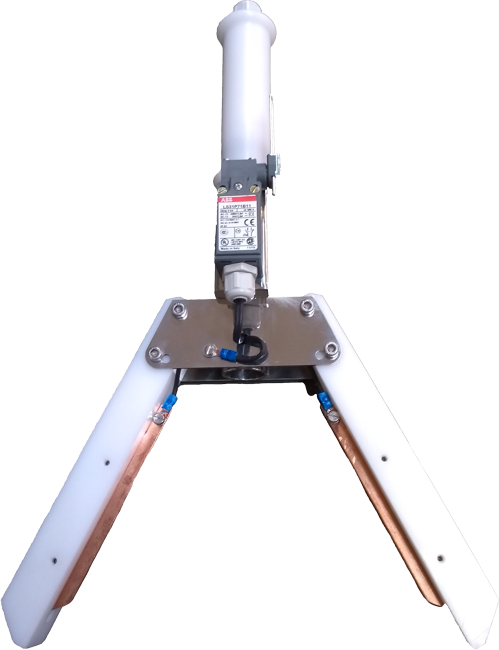

  • Fork for stunning included;
  • Mounted in ABS case;
  • In accordance with NR10 brazilian standard;

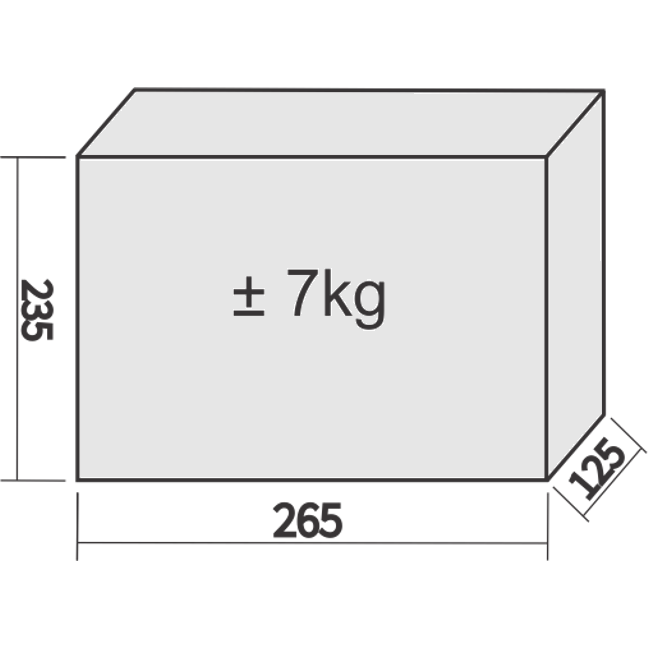

  • Equipment dimensions: 265x235x125mm.
