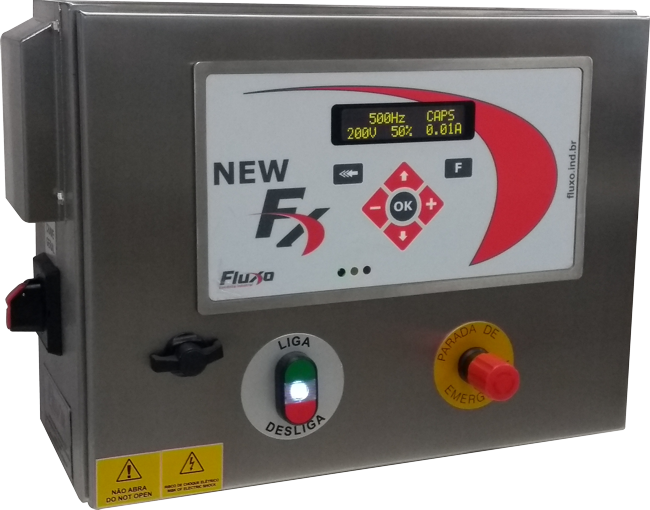

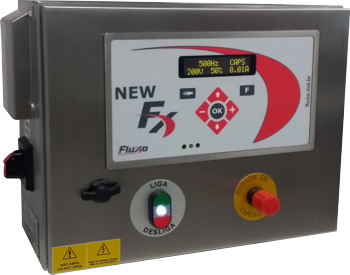

NEW FX

The NEW FX is a compact high performance poultry stunner for industrial slaughterhouses that allows apply the stunner paramenters of 1099/2009, ensuring the animal welfare and simultaneously excellent results in the meats quality. All this is possible through the sophisticated control algorithms in the waveforms and work frequency that generates electrical current pulses that act with efficiency in the animal nervous system, without undesirable effects in the musculature and bone structure. With the XWControl function its possible reduce up to 64% the meat damages, improving significantly the slaughter performance*. *(Compared with parameters of CE1099/2009).

With the 5 programmable setups it is possible to change the parameters of the stunning more easily, leaving registered the ideal values for each situation of slaughter.

TECHNICAL CHARACTERISTICS

  • Selection of the waveform (square AC, DC, AC sine (PWM), post-bleeding AC, post-bleeding DC and XW Control CC e CA);
  • Power supply: 220V 50 or 60Hz;
  • Output frequency: 20 up to 3000Hz;
  • Output voltage: 10 up to 250VRMS;
  • Output current: 3A;
  • Output power rating: 350W;
  • Up to 5000 birds/hour;
  • 5 programmables setups;
  • Dutycycle: 10% up to 90%;
  • Three languages (brazilian portuguese, english and spanish);
  • Access control by password of programming system;
  • Equipment with protection and security resources;
  • Protection against overload by software and hardware;
  • Protection against high work temperature;
  • Electrical supply monitoring to equipment protection;
  • General key with locking device and padlock application;
  • In accordance with brazilian electrical safety standard;
  • Equipment dimensions: 445x350x205mm.
