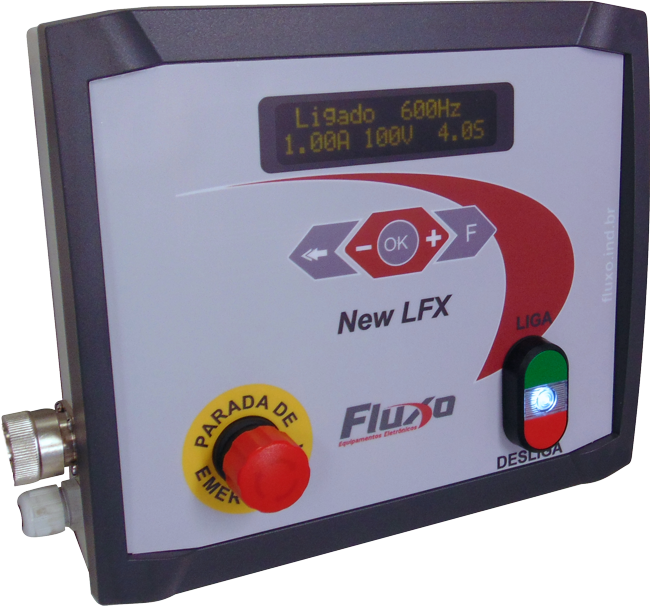

NEW LFX

The New LFX is a compact, portable and light poultry stunner. Optimized for better application of electrical signals to the poultry stunning manually enables a perfect stunning without suffering the bird and without meat losses, including meeting the animal welfare. The adjustment voltage, current, frequency and stunning time allow complete control of the stunning process, allowing precise adjustment in each case.

With a decrease in the size and weight of the equipment, LFX can now be easily taken to other points in the slaughterhouse, making it much more practical to use.

TECHNICAL CHARACTERISTICS

  • Single phase power supply: 220V 50 or 60Hz;
  • Output current: 2A;
  • Output voltage: 0 up to 250V;
  • Output frequency: 20Hz up to 3000Hz
  • Indication of voltage, current, frequency and time in the display;
  • Protection against overload, overvoltage and undervoltage at the power supply;
  • Control by voltage or current;
  • Internal isolating transformer;
  • Visual indication of the system in operation;
  • Possibility of operation by fork activation;

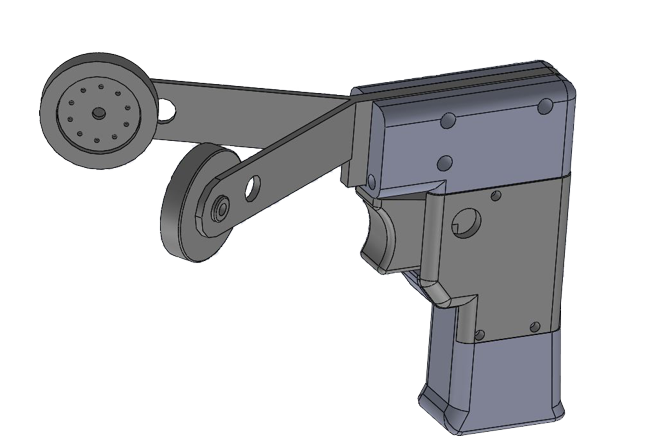

  • Fork for stunning included;
  • Mounted in ABS case;
  • In accordance with NR10 brazilian standard;

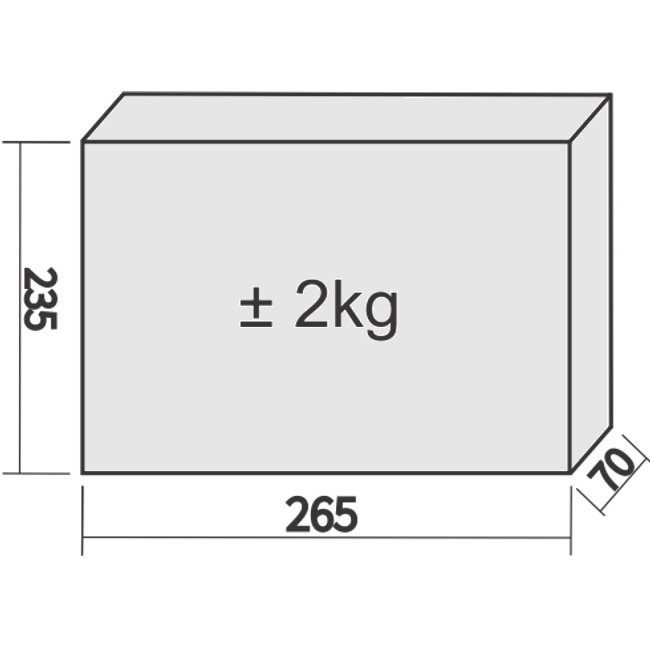

  • Equipment dimensions: 265x235x70mm.
