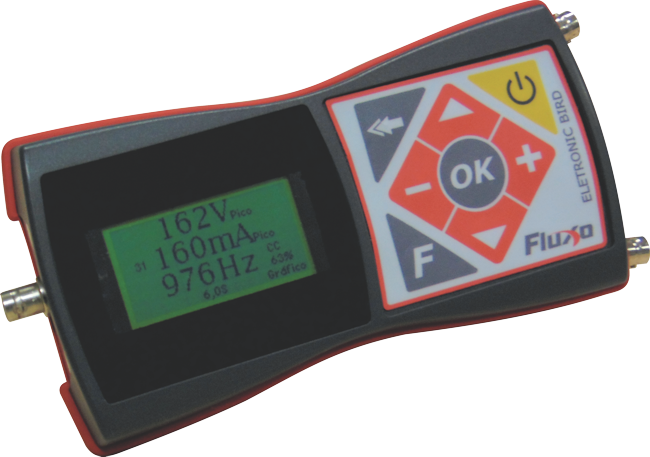

NEW ELECTRONIC BIRD

Equipment specially designed to do inspections in the waterbath stunning. It is an electronic equipment, portable, which simulates the electrical resistance of a poultry. All data can be viewed in a graphic display and transferred to a computer to analyze the stunning process and check anomalies in the installation.

The new version of the Electronic Bird can storage more graph data and also can analyze the stunner system efficiency and is able to work with all waveform types!

TECHNICAL CHARACTERISTICS

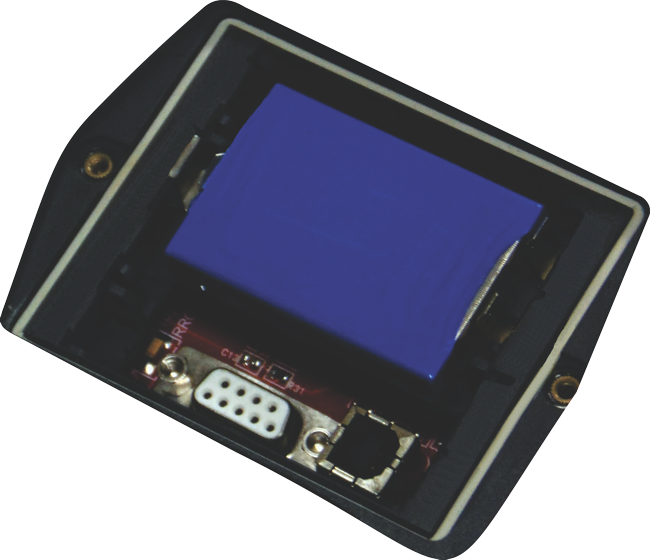

  • Lithium-ion battery supply;
  • USB charger;
  • Frequency read range: 10Hz up to 3KHz;
  • Current read range: 0mA up to 500mA;
  • Voltage read range: 0V up to 500V;
  • Time read range and data register: 4.0s up to 30.0s;

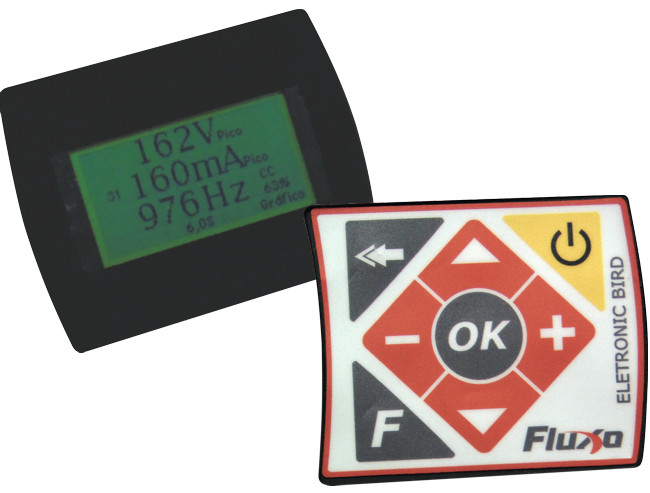

  • Data presentation: Graphic display or numeric data in the equipment;
  • Data storage capacity: Up to 100 complete tests;
  • Necks kit with lenghts 180mm, 250mm and 300mm;
  • Equipment dimensions: 210x100x40mm.

ACCESSORIES

ELECTRONIC BIRD SOFTWARE

The software Electronic Bird allows the user downloads the data to a computer and after that view the graphics generated by the equipment and create reports to analyze, print or export them to pdf or xml. Serial communication through cable with RS 232.
