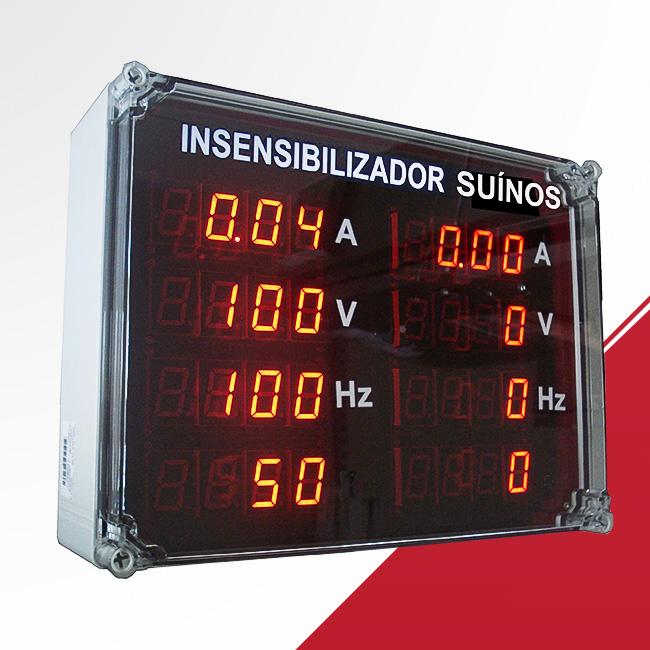

DIGITAL INDICATOR FX100 8 FIELDS

Distant viewing of the data collected in the head and chest of the pig: Current; voltage; frequency and time of stunning.

With high-brightness LED, the modbus FX100 indicator allows the user to view, even the distance, the monitored values of other devices that have RS-485 communication with modbus-RTU protocol.

TECHNICAL CHARACTERISTICS

  • RS-485 communication, modbus-RTU protocol master-slave;
  • Panel with 8 indicators, 4 digits of 1,5” each;
  • 110 VAC or 220 VAC power;
  • Programmable indicators individually or in combination;
  • Protection category IP67;
  • Equipment dimensions 300(H)x400(L)x132(W)mm;

APPLICATIONS

  • Indicates the pig stunning variables in a form clearly and visible at the distance, with the simultaneous indications: voltage, current, frequency and time applied to the head and also in the chest.
  • Allows the interconnection in networking or centralization of various equipments in a automation system.
