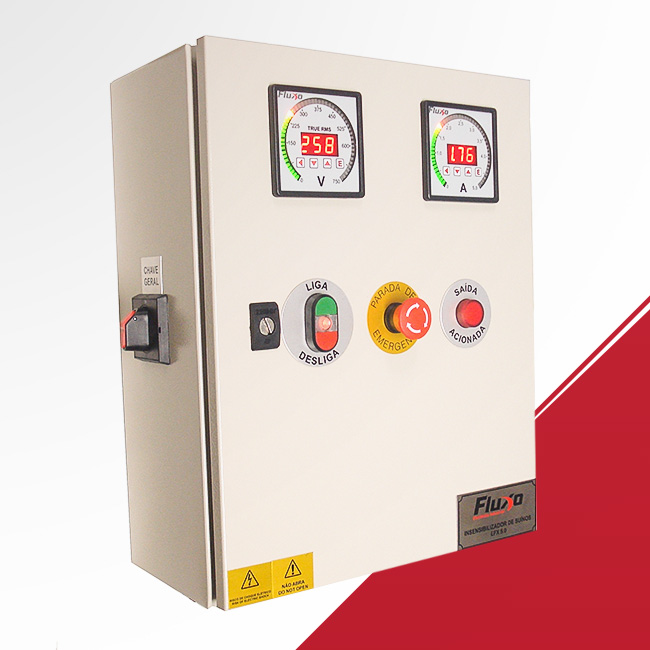

EMERGENCY STUNNER EFX 6.0 - FLUXO

Intending to attend the small pig slaughterhouses and emergencies situations, the Fluxo has developed a stunner that supply the requirements of animal welfare complying all the points of the actual legislation, ensuring the elimination of losses by the process of stunning and integral adequacy to the standards.

TECHNICAL CHARACTERISTCS:

  • Single-phase power suplly 220V/50Hz or 60Hz;
  • Output voltage: 0 to 750V;
  • Output current: 10A;
  • Output frequency: 60Hz to 600Hz;
  • Voltage and current indication on the panel;
  • Protection against overload, overvoltage and undervoltage in the power input;
  • Control by voltage and current;
  • Time control;
  • Isolation transformer;
  • Visual indication of system operation;
  • Can work trhough with fork sensor or by pedal;
  • Mounted in carbon steel with epoxy painting and IP54 protection level;
  • In accordance with NR10 Brazilian standard;
  • Optional in inox box;

FORKS - OPTIONALS

Model Fluxo Code
Forks for stunners, inox pig scissors TI - P - 0. V4P
Inox transfer fork with sensor GIR - I - S. V4P
Inox transfer fork without sensor GIR - I - 0. V4P
Forks for pig stunner without sensor GI - I - 0. V4P
Forks for pig stunner with sensor GI - I - S. V4P
Foot pedal with IP65 protection PC- E - V4P
