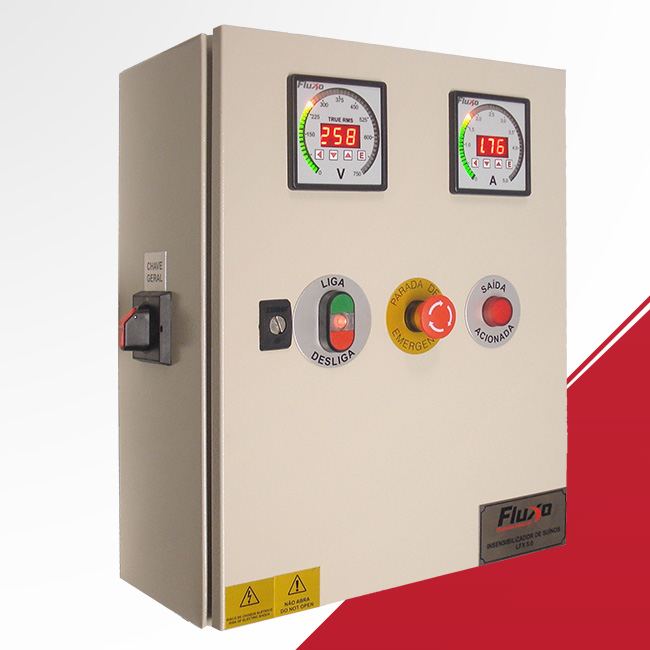

PIG STUNNER LFX 5.0

Intending to attend the small pig slaughterhouses, the Fluxo has developed a stunner that supply the requirements of legislation and animal welfare and increased earnings.

ADVANTAGES IN THE USE OF FLUXO STUNNERS:

  • Utilize a reliable equipment, with technical assistance made by a specialized company in maintenance of slaughterhouses equipments;
  • Apply an stable and controlled electric signal, which guarantees the stunning by electrocution respecting the animal welfare;
  • Possibility of adjusts in the levels of current, voltage, frequency and time;
  • Control of stunning by voltage or current;
  • With electronic supervision system that applies only the stunning signs when the fork electrodes are in the animal carcass, ensures a secure and reliable operation (Only in forks with sensor);
  • Indication of the values of voltage and current on the panel;
  • Luminosity signal indicating when the output are activated, facilitating the operation;
  • Equipment with required patent by INPI (Instituto Nacional da Propriedade Industrial);

TECHNICAL CHARACTERISTCS

  • Single-phase power suplly 220V/50Hz or 60Hz;
  • Output voltage: 0 to 400V;
  • Output current: 5A;
  • Output frequency: 60Hz to 600Hz;
  • Voltagen and current indication on the panel;
  • Protection against overload, overvoltage and undervoltage in the power input;
  • Control by voltage and current;
  • Time control;
  • Isolation transformer;
  • Visual indication of system operation;
  • Mounted in carbon steel with epoxy painting and IP54 protection level;
  • In accordance with NR10 Brazilian standard;
  • Optional in inox box;

OPTIONALS

Model Code
Stunning forks for pigs in PVC without sensor (1,20 e 0,70 cm) GI - P - 0. V4P
Stunning forks for pigs in PVC with sensor (1,20 e 0,70 cm) GI - P - S. V4P
Stunning forks for pigs without sensor GI - I - 0. V4P
Stunning forks for pigs with sensor GI - I - S. V4P
ELECTRODES
Cardiac electrode Code
Cardiac electrode inox TP - I - 0. V4P
Cardiac electrode inox TPF - I - 0. V4P
Foot pedal IP65 protection PC- E - V4P
