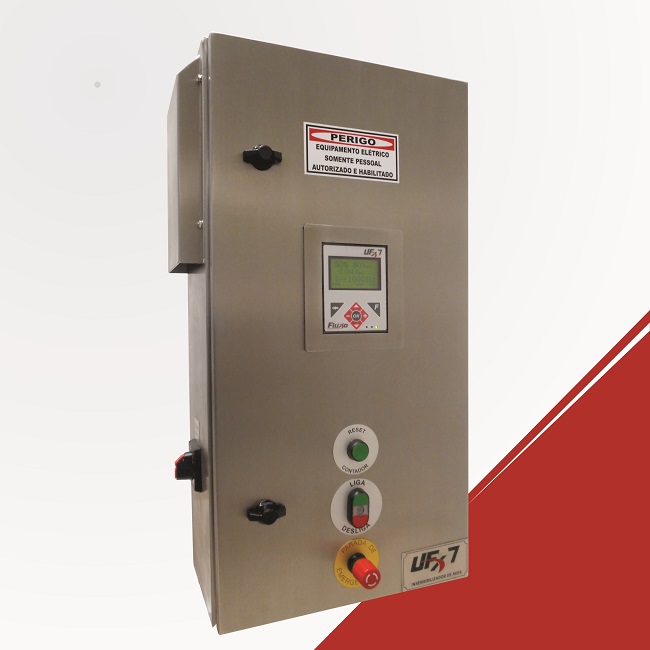

POULTRY STUNNER UFX 7

The new UFX 7 is a Electronic Stunner of poultry for slaughter industrial lines of high performance that allows apply the stunning parameters of the Regulation 1099/2009, ensuring welfare and animal getting at the same time excellent results in meat quality. This all is possible due because sophisticated control algorithms of the waveforms and frequency (XWControl function ) that can generate electrical current pulses that act effectively in the central nervous system of the bird without generating unwanted effects in the meat.

With the 10 programmable setups it is possible to change the parameters of the stunning more easily, leaving registered the ideal values for each situation of slaughter.

TECHNICAL CHARACTERISTICS

  • Selection of the waveform (square AC, DC, AC sine (PWM), post-bleeding AC, post-bleeding DC and XW Control CC e CA);
  • Power supply: 220V 50 or 60Hz;
  • Output voltage: 80 up to 500VRMS;
  • Output frequency: 20 up to 3000Hz;
  • 10 programmables setups;
  • Dutycycle: 10% up to 90%;
  • Poultry counter integrated (requires accessory);
  • Two communication serial ports RS485, MODBUS RTU protocol;
  • Three languages (brazilian portuguese, english and spanish);
  • Voltage and current graphics displayed in screen;
  • Access control by password of programming system;
  • Equipment with protection and security resources
  • Resources of security and protection;
  • Protection against overload by software and hardware;
  • Protection against high work temperature;
  • Electrical supply monitoring to equipment protection;
  • Fault and parameter log;

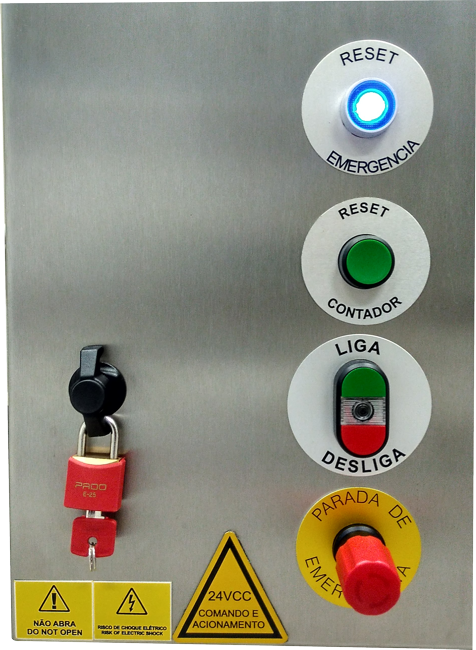

  • General key with locking device and padlock application;
  • In accordance with brazilian electrical safety standard;
  • Equipment dimensions: 460x1040x200mm.

ACCESSORIES

POULTRY STUNNER SUPERVISORY

With the supervisory system of birds stunning, the data is read directly from the stunner and reliably stored in the database that enables the generation of reports for a period in the form of graphics or table of values, also enabling generation documents in pdf format for emailing or printing. The parameters of stunner process can be seen in real time on the computer screen, allowing audits to view the data online.

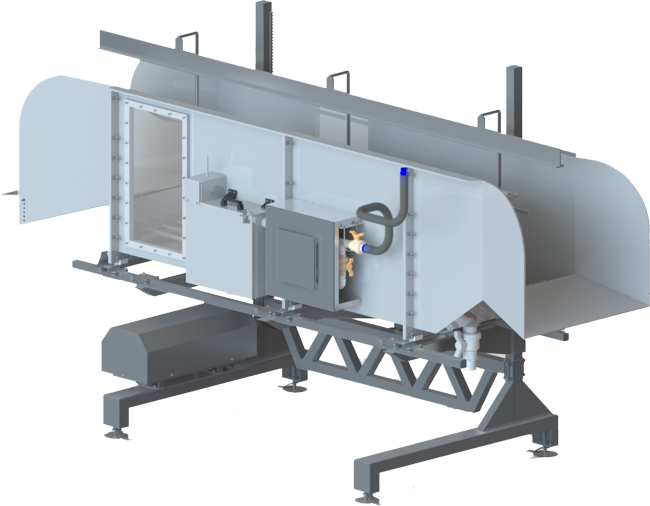

WATERBATH POULTRY STUNNER

Equipment built to poultry stunning with water immersion in accordance with the animal welfare requisitions, generating more productivity, meat quality. Mechanical dimensions projected to suit the customer needs.

POULTRY COUNTER WITH INDICATOR SPEED OVERHEAD CONVEYOR

For installation in poultry overhead conveyor. Equipment that allows you to monitor the speed of overhead conveyor in real time while making the count of slaughtered poultry.
