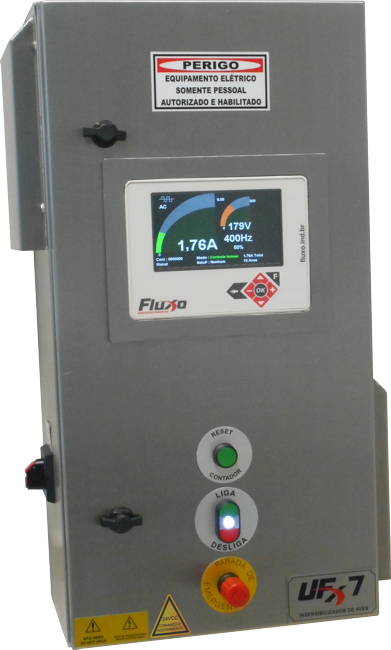

UFX 7 STANDARD

The new UFX 7 is a Electronic Stunner of poultry for slaughter industrial lines of high performance that allows apply the stunning parameters of the Regulation 1099/2009, ensuring welfare and animal getting at the same time excellent results in meat quality. This all is possible due because sophisticated control algorithms of the waveforms and frequency (XWControl function ) that can generate electrical current pulses that act effectively in the central nervous system of the bird without generating unwanted effects in the meat.

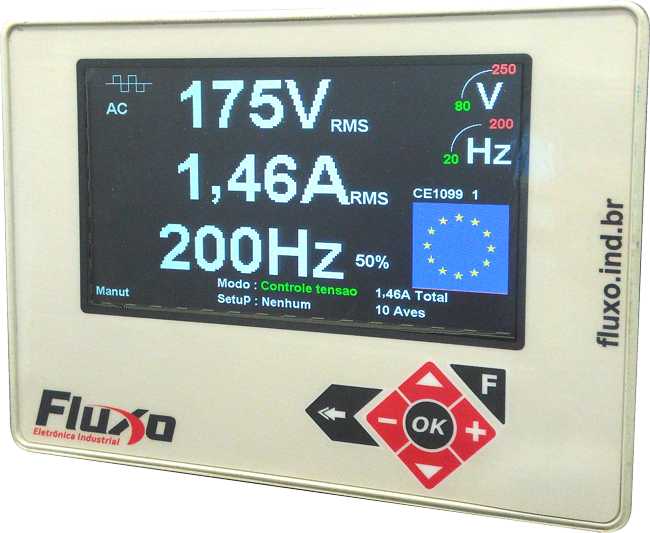

With the new HMI is possible limitate the stunning parameters in accordance with the pre-requisites of the normative selected, directly on the equipment screen.

With the 10 programmable setups it is possible to change the parameters of the stunning more easily, leaving registered the ideal values for each situation of slaughter.

TECHNICAL CHARACTERISTICS

  • Selection of the waveform (square AC, DC, AC sine (PWM), XW Control CC e CA);
  • Power supply: 220V 50 or 60Hz;
  • Output voltage: 10 up to 350VRMS;
  • Output frequency: 20 up to 3000Hz;
  • 10 programmables setups;
  • Dutycycle: 10% up to 90%;
  • Poultry counter integrated (requires accessory);
  • Two communication serial ports RS485, MODBUS RTU protocol;
  • Three languages (brazilian portuguese, english and spanish);
  • Voltage and current graphics displayed in screen;
  • Access control by password of programming system;
  • Equipment with protection and security resources
  • Resources of security and protection;
  • Protection against overload by software and hardware;
  • Protection against high work temperature;
  • Electrical supply monitoring to equipment protection;
  • Fault and parameter log;
  • General key with locking device and padlock application;
  • In accordance with brazilian electrical safety standard;
  • Equipment dimensions: 460x776x200mm.

ACCESSORIES

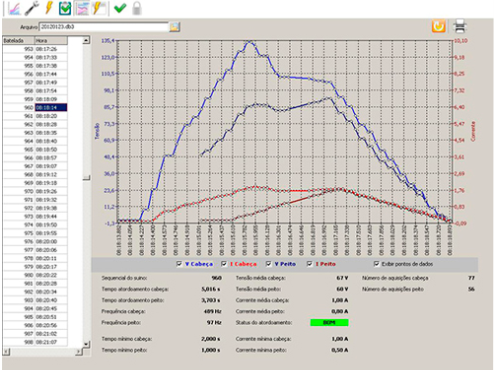

POULTRY STUNNER SUPERVISORY

CWith the poultry stunner supervisory system, the stunner data are read directly of equipment and stored in a database that enables the report creation, graphic or data table, allowing export this files to pdf.

WATERBATH POULTRY STUNNER

Equipment built to poultry stunning with water immersion in accordance with the animal welfare requisitions, generating more productivity, meat quality. Mechanical dimensions projected to suit the customer needs.

POULTRY COUNTER WITH INDICATOR SPEED OVERHEAD CONVEYOR

For installation in poultry overhead conveyor. Equipment that allows you to monitor the speed of overhead conveyor in real time while making the count of slaughtered poultry.
