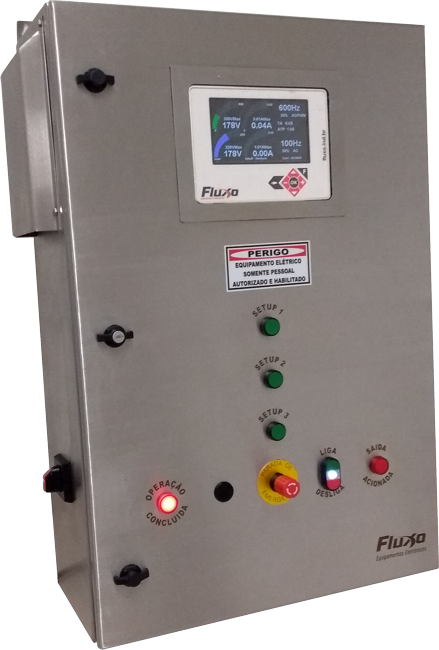

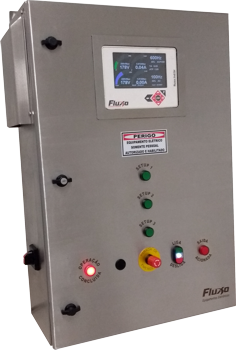

UFX 7 - PIGS

The UFX 7 is an equipment to install in medium or big slaughterhouses that uses box, manual or automatic restrainer. This equipment works through the three points method, leaving the pig completely unconsciousness before slaughtered. With its unique signal control system, where the head and chest signal has different controls, we get better meat quality, less number of fractures and less meat losses, beyond compliance with the animal welfare requirements of WAP (World Animal Protection).

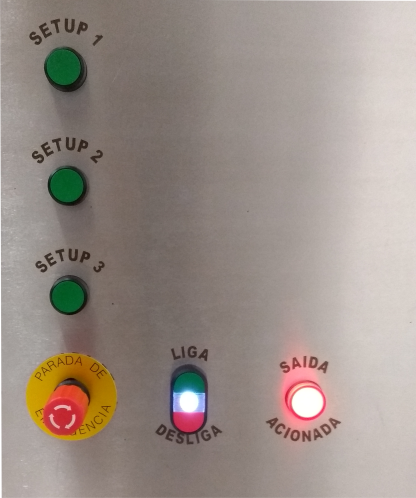

With the 10 programmable setups it is possible to change the parameters of the stunning more easily, leaving registered the ideal values for each situation of slaughter.

TECHNICAL CHARACTERISTICS

  • Power supply: 220V 50/60Hz;
  • Waveform selection;
  • Voltage output: 30 up to 400V;
  • Adjustable output current: 0,5 up to 6A;
  • Adjustable output frequency: 20 a 3000Hz;
  • 10 programmables setups;
  • Output activation counter;
  • HIM with colored LCD TFT 7” high brightness screen;
  • Communication serial ports RS485, MODBUS RTU protocol;
  • Three languages (brazilian portuguese, english and spanish);
  • Voltage and current graphics displayed in screen;
  • Resources of security and protection;
  • Protection against overload by software and hardware;
  • Protection against high work temperature;
  • Electrical supply monitoring to equipment protection;
  • General key with locking device and padlock application;
  • In accordance with brazilian electrical safety standard;
  • Equipment dimensions: 900x660x260mm;
  • Protection level IP65 with air pipeline, without this IP54.

ACCESSORIES

STUNNER SUPERVISORY

With the poultry stunner supervisory system, the stunner data are read directly of equipment and stored in a database that enables the report creation, graphic or data table, allowing export this files to pdf.

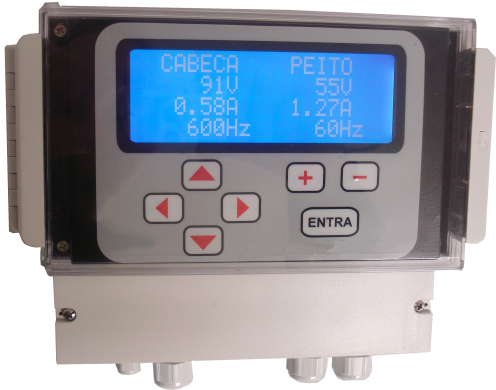

DATA LOGGER

Connected to UFX 7 electronic module, the data logger receives information of current, voltage, frequency and time read in the process and retransmits through of modbus communication to monitoring system and also to the FX100 digital indicator.

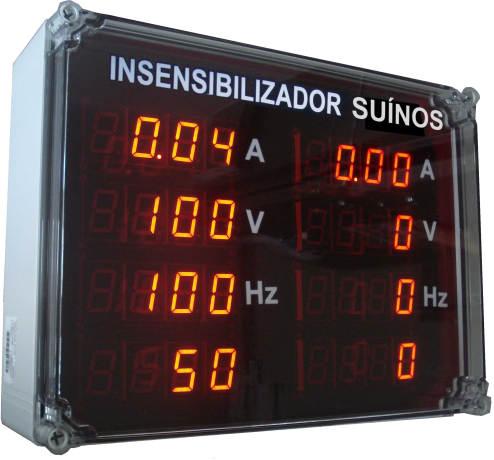

DIGITAL INDICATOR FX-100

With high-brightness LED, the modbus FX100 indicator allows the user to view, even the distance, the monitored values of other devices that have RS-485 communication with modbus-RTU protocol.
