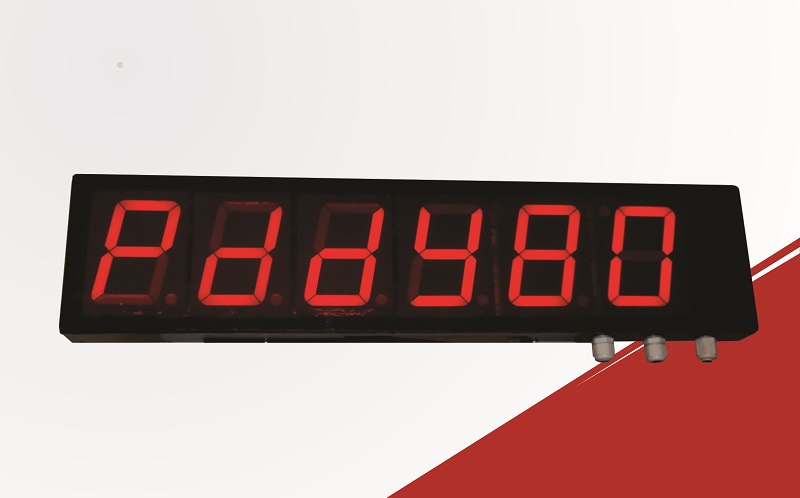

MODBUS SERIAL INDICATOR

The MODBUS indicator was developed to facilitate the variables view at distance of any kind of data, including temperature, current, tension, frequency, lot etc. Through of 6 numerical displays of 4’’ 7-segment each. Can work together the lot indicator showing the data which are exhibited in the main display. It also has input data confirmation what received through the serial. Works with RS 485 MODBUS RTU protocol, as master or slave. Indicates letters or numbers depending of the desired programmation.

GENERAL CHARACTERISTICS:

  • Avaible in a box of carbon steel, inox or ABS.
  • Input to data confirmation;

TECHNICAL SPECIFICATIONS:

  • Power supply: 90 up to 240Vac, 50/60 Hz (automatic);
  • Display with 6 digits seven-segments of 4”;
  • RS485 communication;
  • MODBUS RTU protocol;
  • Work conditions: 5 up to 45º C without condensation;
  • Humidity between 35% and 85%;
  • IP67 protection rating;

OPTIONALS

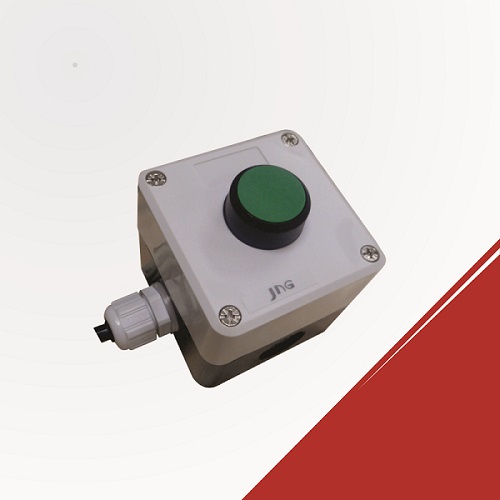

External control to confirm the indicated data made in ABS IP66 External control to programmation made in ABS
