ELECTRICAL MEASUREMENTS INDICATORS

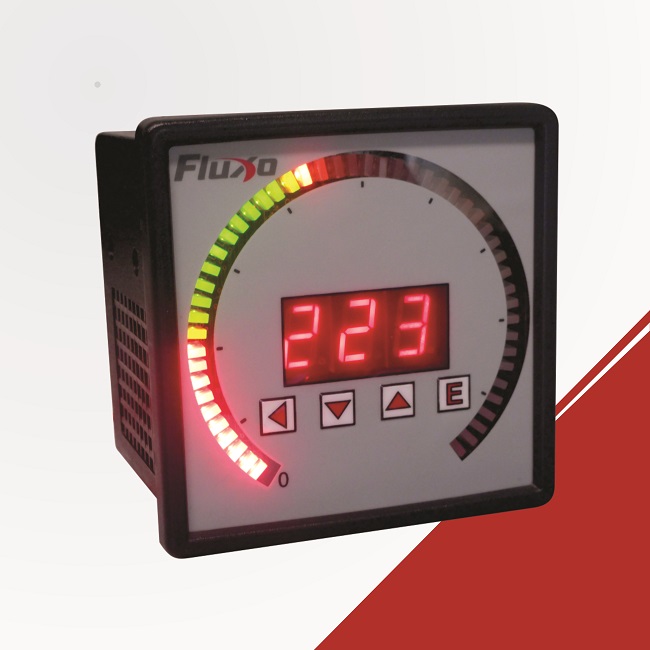

The Fluxo universal indicator were developed joining the digital display with a programmable three color graphic LEDs bar, to view if the measure is it in accordance with the predetermined parameters, with the possibility of alarm activation when they are not. It use is possible use in any application, even those that require a dynamic response of parameters obtained.

With RS-485 communication and MODBUS RTU protocol (optional), the indicator can be connected to a supervisor, enabling the recording and storage of measured quantities, facilitating further analysis.

Depending of the version of ammeter or voltmeter it is possible obtaining the maximum and minimum register, the viewing of the peaks and valleys of the measured values without need to constantly look to the equipment, which will indicate them by flashing LEDs.

TECHNICAL CHARACTERISTICS

  • Power supply: 90-240V 50/60Hz (automatic);
  • Seleção automática de forma de onda True RMS (CA+CC, CC ou CA);
  • Maximum frequency of frequency meter: 2000Hz;
  • Programmable alarm on begin or end of scale;
  • Output alarm temporization;
  • Shows the magnitude through graphic bar or dot;
  • Programmable divisions on graphic scale;
  • Register of maximum and minimum values;
  • 7 segments display;
  • Output relay up to 250V/3A (optional);
  • RS 485 communication with MODBUS RTU protocol (optional).

Digital indicator 4-20mA or 0-20mA:

  • Programmable indication from -199 up to 999;

Digital indicator 0-5V or 0-10V:

  • Programmable indication from -199 up to 999;

ACCESSORIES

SUPERVISORY SYSTEM

With the supervisory system for digital indicators, it is possible view the values registerd by the instruments in a computer through MODBUS RTU communication. Also is possible create reports containing the measurements obtained and export or print them.
